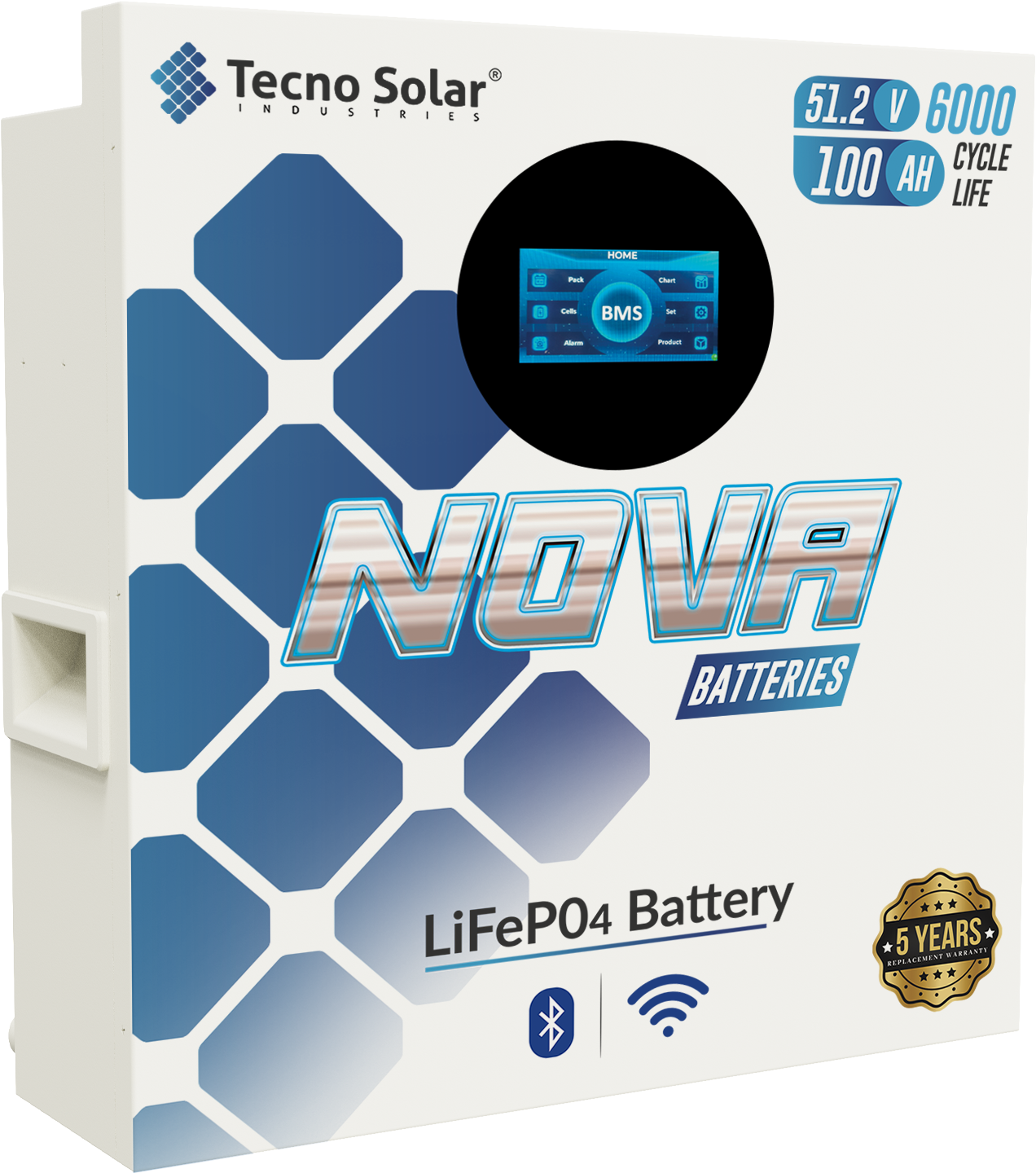

TSI-NOVA Wall 51.2V 100Ah (Model: TSI-5120WH)

The flagship TSI-NOVA Wall 51.2V 100Ah packs 5.12kWh of high-capacity energy in a wall-mount design. With 6000+ cycles, advanced communication protocols, and stackable scalability up to ~76.8kWh, it is the ideal choice for residential, commercial, and industrial energy storage.

Key Features

  • High Energy Density – 5.12kWh per unit.
  • 6000+ Cycle Life – long-term performance guarantee.
  • Smart Integration – CAN, RS485 & RS232 communication.
  • Scalable – up to 15 units in parallel (~76.8kWh).
  • High Efficiency – up to 99% conversion rate.
  • Advanced BMS – ensures battery safety and performance.
  • IP65 Protection – Dust and water-resistant.

Technical Specifications

  • Nominal Voltage: 51.2V
  • Capacity: 100Ah (5.12kWh)
  • Operating Voltage: 43.2V – 57.6V
  • Cycle Life: 6,000 cycles @ 80% DoD
  • Round-Trip Efficiency: 99%
  • Charge/Discharge Current: 100A (continuous)
  • Max Pulse Current: 250A (<10s)





Download Data Sheet: PDF File
